Arduino Modules

Arduino Modules and Sensors

There are a plethora of Arduino Modules - with variety of functions for all sorts of things such as temperature sensors to servo drivers that can found these days.  Example of Arduino modules are shown in the image below.




There are so many Arduino models that it is hard to keep track of what is what these days.  To help out see some of the common modules below.  Click on the links below for respective modules for additional information.

Modules 1-6 (click to enlarge):




01. DS18B20 sensor module
02. Vibration switch module
03. Hall magnetic sensor module
04. Key switch module
05. Infrared transmitter module
06. Passive buzzer module

Modules 7-12 (click to enlarge):






07. Laser transmitter module
08. 3 colors - Full Color LED SMD Module
09. Photo interrupter module
10. 3 mm red and green LED module (common cathode)
11. Active buzzer module
12. Analog temperature sensor

Modules 13-17 (click to enlarge):



13. DHT11 digital temperature and humidity sensor module
14. 3 colors - LED full color module
15. Mercury tilt switch module
16. Photoresistor module
17. 5V Relay Module

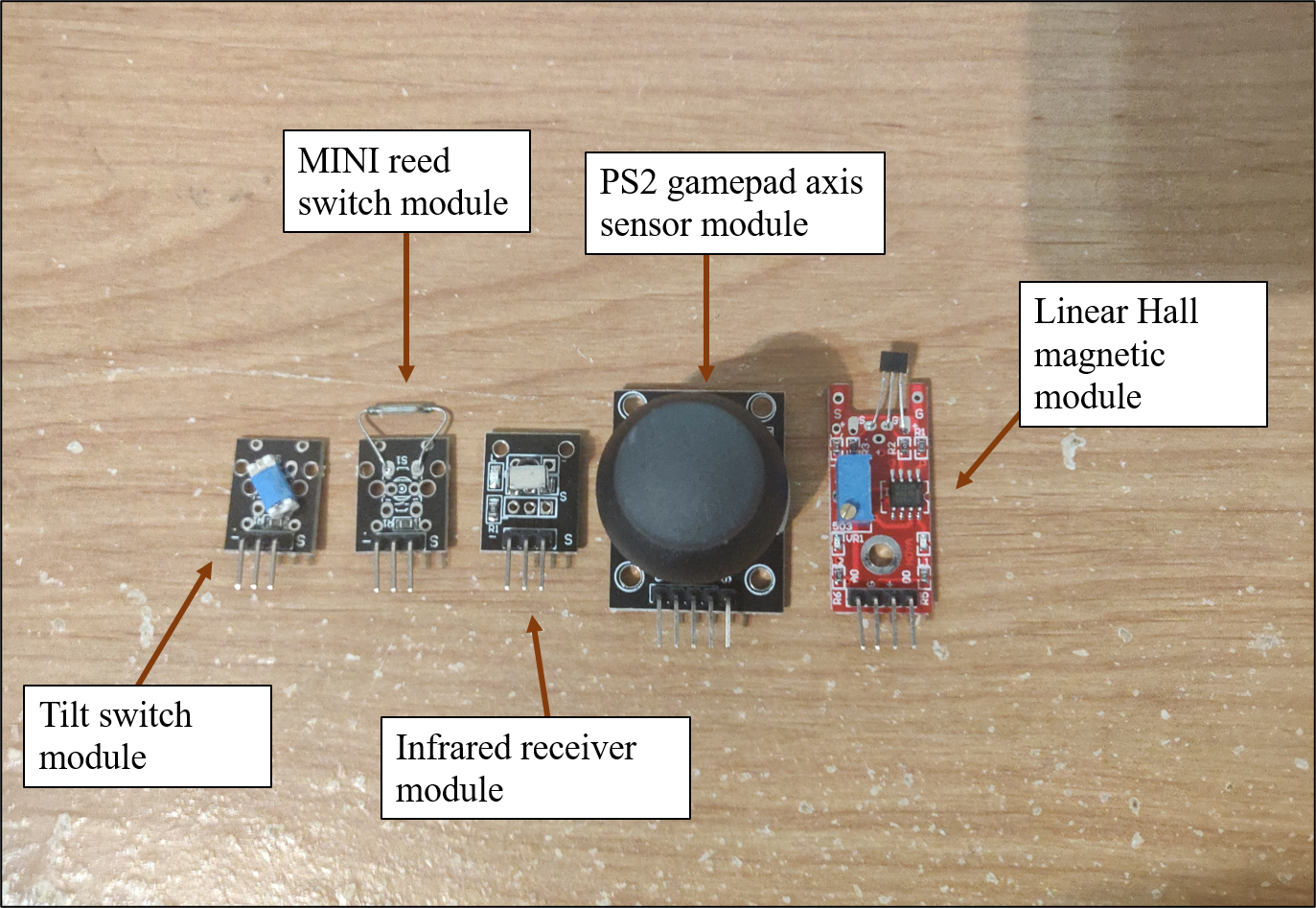

Modules 18-22 (click to enlarge):



18. Tilt switch module
19. MINI reed switch module
20. Infrared receiver module
21. PS2 gamepad axis sensor module
22. Linear Hall magnetic module

Modules 23-27 (click to enlarge):




Modules 28-32 (click to enlarge):



28. Knock sensor module
29. Infrared obstacle avoidance sensors
30. 7 color flashing LED module
31. Analog Hall magnetic sensor module
32. Touch Module

Modules 33-37 (click to enlarge):



33. High sensitivity sound detection module
